Examples

The following sections provide examples of how TODS can represent specific use cases. The inclusion of these examples should not be as an indication that this is the only way to represent these use cases with TODS. If you have questions about a use case not represented here, please feel free to create an issue in GitHub.

Single Run with Pull-Out and Lunch Break

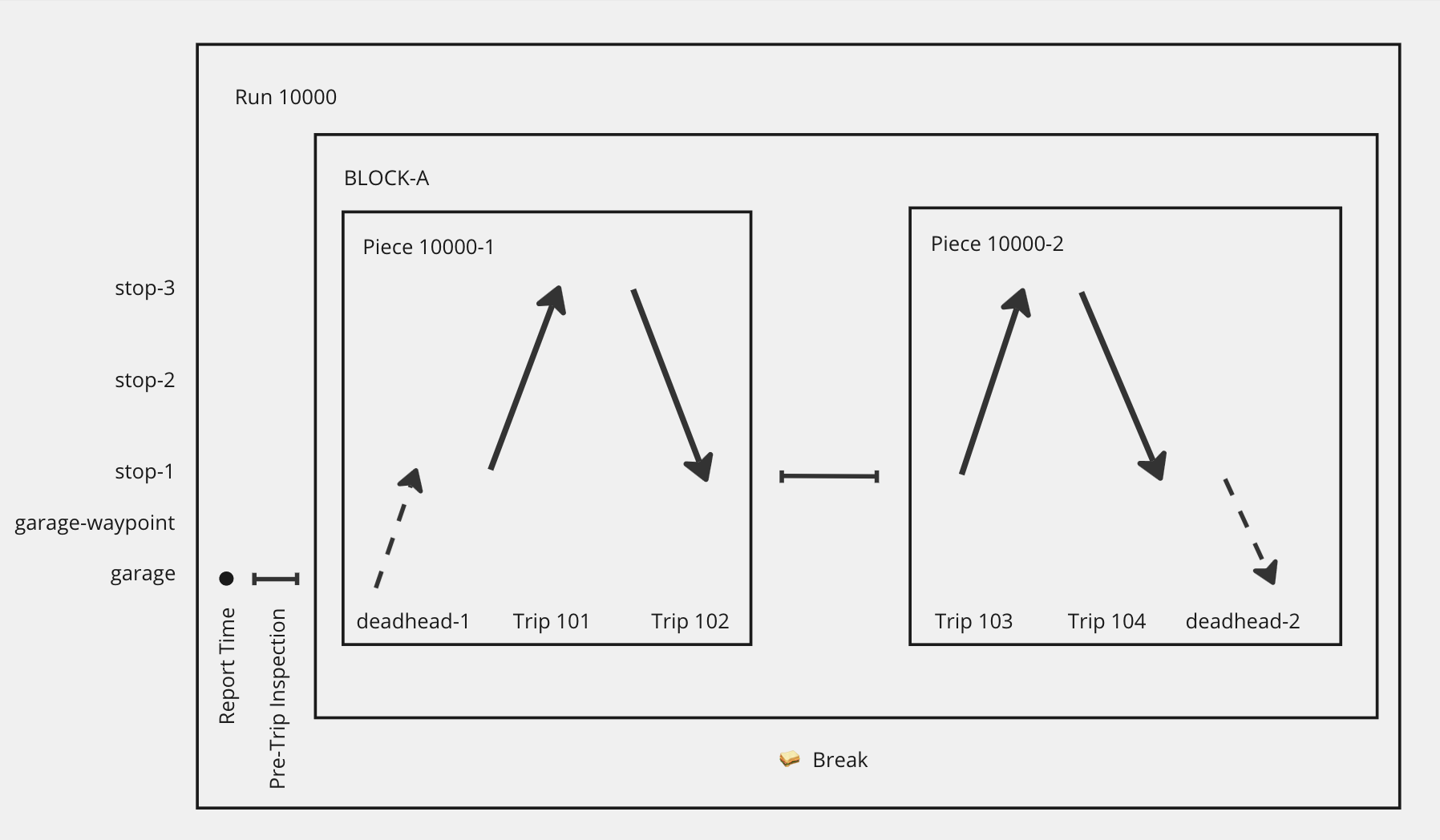

In this example, a bus driver is assigned to run 10000, which has four revenue trips on two pieces, all on the same block. The run also includes a pull-out, a pull-back, a pre-trip inspection, and a lunch break between the two pieces.

GTFS Files

These are the same files that would be published in the agency’s public GTFS file, and contains only revenue trips and public information.

Some irrelevant files are ommitted for brevity.

stops.txt

stop_id,location_type
stop-1,0
stop-2,0
stop-3,0

routes.txt

route_id,route_short_name,route_type
12,12,3

trips.txt

route_id,service_id,trip_id,trip_headsign,direction_id,block_id
12,daily,101,North,0,BLOCK-A
12,daily,102,South,1,BLOCK-A
12,daily,103,North,0,BLOCK-A
12,daily,104,South,1,BLOCK-A

stop_times.txt

trip_id,arrival_time,stop_id,stop_sequence
101,10:00,stop-1,1
101,10:25,stop-2,2
101,10:50,stop-3,3
102,11:00,stop-3,1
102,11:25,stop-2,2
102,11:50,stop-1,3
103,13:00,stop-1,1
103,13:25,stop-2,2
103,13:50,stop-3,3
104,14:00,stop-3,1
104,14:25,stop-2,2
104,14:50,stop-1,3

TODS Files

These are the new files that are published in TODS. In this example, the TODS files do not delete or modify any rows that were published in GTFS.

stops_supplement.txt

stop_id,location_type,TODS_location_type
garage,0,garage
garage-waypoint,0,

routes_supplement.txt

route_id,route_long_name
deadheads,Deadheads

In this example, the agency puts all of its deadheads on this new route, though agencies may have other ways to assign deadheads to routes.

trips_supplement.txt

route_id,service_id,trip_id,block_id,TODS_trip_type
deadheads,daily,deadhead-1,BLOCK-A,pull-out
deadheads,daily,deadhead-2,BLOCK-A,pull-back

In this example, consumers know that these trips aren’t in revenue service because of the route_id and TODS_trip_type.

stop_times_supplement.txt

trip_id,arrival_time,stop_id,stop_sequence
deadhead-1,09:45:00,garage,1
deadhead-1,09:50:00,garage-waypoint,2
deadhead-1,09:55:00,stop-1,3
deadhead-2,14:50:00,stop-1,1
deadhead-2,14:55:00,garage-waypoint,2
deadhead-2,15:00:00,garage,3

run_events.txt

service_id,run_id,event_sequence,piece_id,block_id,job_type,event_type,trip_id,start_location,start_time,start_mid_trip,end_location,end_time,end_mid_trip
daily,10000,10,       ,       ,Operator,Report Time,        ,garage,09:30:00,,garage,09:30:00,
daily,10000,20,       ,       ,Operator,Pre-Trip Inspection,,garage,09:35:00,,garage,09:45:00,
daily,10000,30,10000-1,BLOCK-A,Operator,Pull-Out,deadhead-1 ,garage,09:45:00,2,stop-1,09:55:00,2
daily,10000,40,10000-1,BLOCK-A,Operator,Operator,101        ,stop-1,10:00:00,2,stop-3,10:50:00,2
daily,10000,50,10000-1,BLOCK-A,Operator,Operator,102        ,stop-3,11:00:00,2,stop-1,11:50:00,2
daily,10000,60,       ,       ,Operator,Break,              ,stop-1,11:50:00,,stop-1,13:00:00,
daily,10000,70,10000-2,BLOCK-A,Operator,Operator,103        ,stop-1,13:00:00,2,stop-3,13:50:00,2
daily,10000,80,10000-2,BLOCK-A,Operator,Operator,104        ,stop-3,14:00:00,2,stop-1,14:50:00,2
daily,10000,90,10000-2,BLOCK-A,Operator,Pull-Back,deadhead-2,stop-1,14:50:00,2,garage,15:00:00,2

Multiple Runs on a Single Block with Mid-Trip Relief

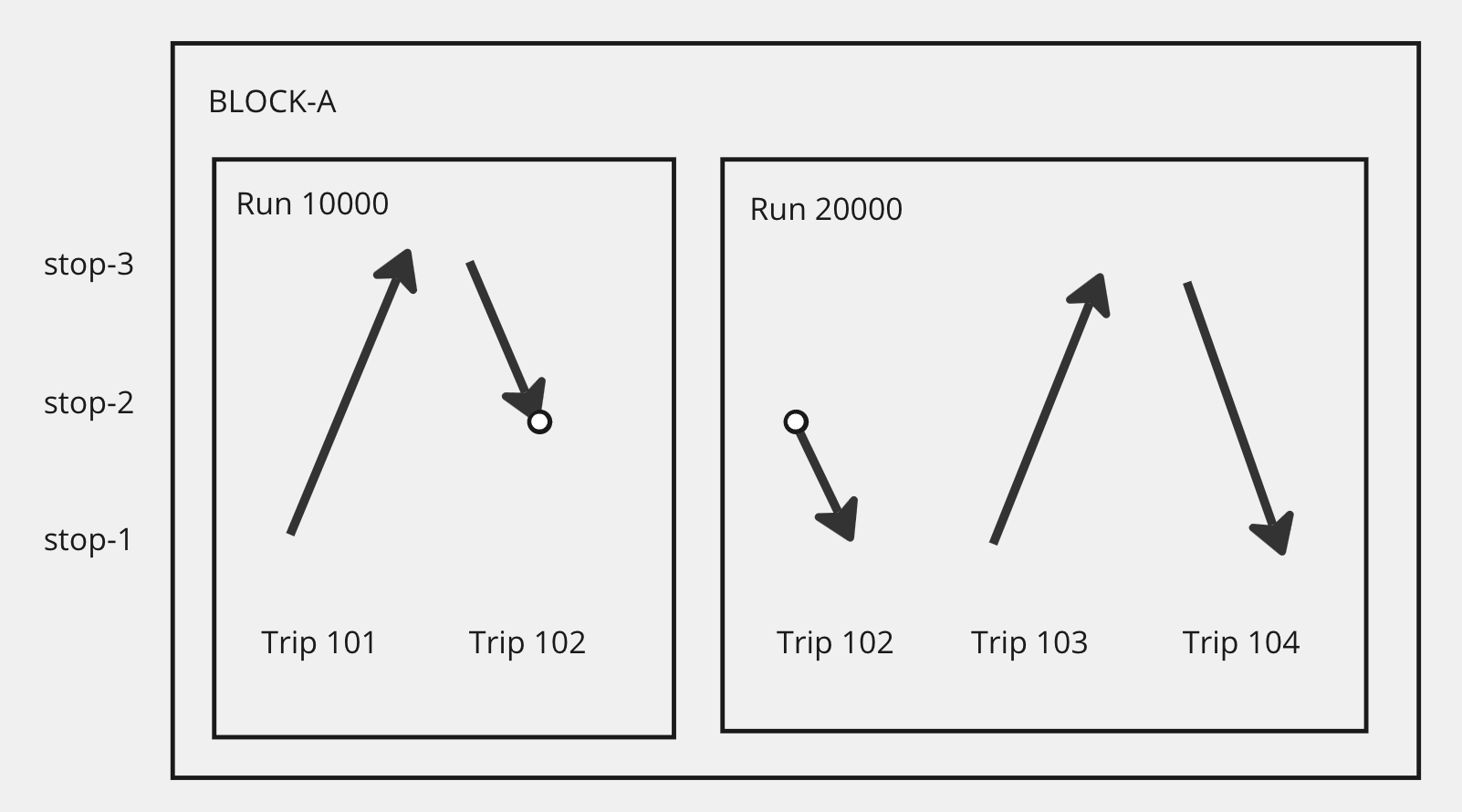

In this example, the bus driver assigned to run 10000 pulls out a bus, does trip 101 and part of trip 102, and then ends their day at stop-2. A new driver on run 20000 boards the bus, completes trip 102, then does trip 103 and trip 104, and pulls back to the garage.

This example uses the exact same GTFS files as the previous example. Deadheads and nonrevenue locations are omitted in order to focus on the revenue trip assignments, so no _supplement.txt files are needed for this example. Only run_events.txt needs to change to reflect the multiple runs and mid-trip relief.

run_events.txt

service_id,run_id,event_sequence,piece_id,block_id,job_type,event_type,trip_id,start_location,start_time,start_mid_trip,end_location,end_time,end_mid_trip
daily,10000,10,10000-1,BLOCK-A,Operator,Operator,101,stop-1,10:00:00,2,stop-3,10:50:00,2
daily,10000,20,10000-1,BLOCK-A,Operator,Operator,102,stop-3,11:00:00,2,stop-2,11:25:00,1
daily,20000,10,20000-1,BLOCK-A,Operator,Operator,102,stop-2,11:25:00,1,stop-1,11:50:00,2
daily,20000,20,20000-1,BLOCK-A,Operator,Operator,103,stop-1,13:00:00,2,stop-3,13:50:00,2
daily,20000,30,20000-1,BLOCK-A,Operator,Operator,104,stop-3,14:00:00,2,stop-1,14:50:00,2

Multiple operators on the same trip

In this example (unrelated to the previous examples), a two-car train does a round trip, and requires two operators, one in the first car and one in the second car. The event_type field distinguishes whether an operator is in the front car or the rear car. The operators swap for the return trip.

run_events.txt

service_id,run_id,event_sequence,job_type,event_type,trip_id,start_location,start_time,end_location,end_time
weekday,10000,10,Operator,Operate 1st Car,trip-1,stop-1,10:00:00,stop-2,10:58:00
weekday,10000,20,Operator,Operate 2nd Car,trip-2,stop-2,11:00:00,stop-1,11:58:00
weekday,20000,10,Operator,Operate 2nd Car,trip-1,stop-1,10:00:00,stop-2,10:58:00
weekday,20000,20,Operator,Operate 1st Car,trip-2,stop-2,11:00:00,stop-1,11:58:00

Run as Directed work

In this example (unrelated to the previous examples), an operator signs in for their shift, pulls out, and then operates a bus for several hours. They are not scheduled to do specific trips, but instead do trips as directed to by dispatch. This approach could apply in several situations:

• An agency uses frequencies.txt (frequencies.trip_id may be able to be referenced in run_events.trip_id).
• An agency publishes specific times in GTFS trips.txt, but in practice operates the service according to a headway, or doesn’t schedule operators to specific trips.
• The operator is assigned to cover or strategic work, and is positioned somewhere where they can cover absences or gaps in service on any route throughout the day.

run_events.txt

service_id,run_id,event_sequence,block_id,event_type,trip_id,start_location,start_time,end_location,end_time
weekday,10000,10,       ,sign-in        ,,garage,08:45:00,garage,08:50:00
weekday,10000,20,BLOCK-A,deadhead       ,,garage,08:50:00,stop-1,09:00:00
weekday,10000,30,BLOCK-A,run-as-directed,,stop-1,09:00:00,stop-1,12:00:00
weekday,10000,30,BLOCK-A,deadhead       ,,stop-1,12:00:00,garage,12:10:00

Jobs of entirely nonrevenue operations

A track inspection train operates once per week, with a separate crew. It’s scheduled and operated separately from other service, so is given its own service ID separate from any trips in the public GTFS file. In this example, the route and stops are assumed to be defined in the public GTFS.

calendar_supplement.txt

service_id,monday,tuesday,wednesday,thursday,friday,saturday,sunday,start_date,end_date
inspection_train,0,0,0,0,0,0,1,20240601,20241231

trips_supplement.txt

route_id,service_id,trip_id,TODS_trip_type,direction_id
line1,inspection_train,inspection_line1_ob,deadhead,0
line1,inspection_train,inspection_line1_ib,deadhead,1

stop_times_supplement.txt

trip_id,stop_id,arrival_time
inspection_line1_ob,downtown,01:00:00
inspection_line1_ob,anytown,01:45:00
inspection_line1_ib,anytown,02:00:00
inspection_line1_ib,downtown,02:45:00

run_events.txt

This file references the service ID and trip ID defined in the other supplement files.

service_id,run_id,event_sequence,event_type,trip_id,start_location,start_time,end_location,end_time
inspection_train ,1 ,1 ,sign-in  ,                    ,main_terminal ,00:45:00 ,main_terminal ,00:45:00
inspection_train ,1 ,2 ,operator ,inspection_line1_ob ,downtown      ,01:00:00 ,anytown       ,01:45:00
inspection_train ,1 ,3 ,operator ,inspection_line1_ib ,anytown       ,02:00:00 ,downtown      ,02:45:00
inspection_train ,1 ,4 ,sign-off ,                    ,main_terminal ,03:00:00 ,main_terminal ,03:00:00

Distinct Crew and Trip schedule scenarios

These examples show situations where the crew schedules in run_events.txt use different service IDs than the trips they work on, as is allowed by the spec. Most agencies will not need to model a situation like this.

In all these cases, the trips and service IDs in the public GTFS file are not modified. New service IDs are created in the calendar supplement files, and runs that operate on those dates are described in run_events.txt.

Extra staffing for a special event

Due to a baseball game, an additional ticket collector will be assigned to supplement the existing crew on train 101, serving the ballpark.

calendar.txt

service_id,monday,tuesday,wednesday,thursday,friday,saturday,sunday,start_date,end_date
weekday,1,1,1,1,1,0,0,20240101,20241231

trips.txt

route_id,service_id,trip_id,block_id
route,weekday,101,BLOCK-A

calendar_dates_supplement.txt

service_id,date,exception_type
gameday,20240820,1
gameday,20240821,1
gameday,20240827,1
gameday,20240903,1

run_events.txt

service_id,run_id,event_sequence,block_id,job_type,event_type,trip_id,start_location,start_time,end_location,end_time
weekday,1,1,       ,collector,sign-in        ,   ,main_terminal,14:00:00,main_terminal,14:15:00
weekday,1,2,BLOCK-A,collector,collector      ,101,main_terminal,14:45:00,ballpark     ,15:30:00
gameday,2,1,       ,collector,sign-in        ,   ,main_terminal,14:00:00,main_terminal,14:15:00
gameday,2,2,BLOCK-A,collector,extra collector,101,main_terminal,14:45:00,ballpark     ,15:30:00

Trip worked by different runs on different dates

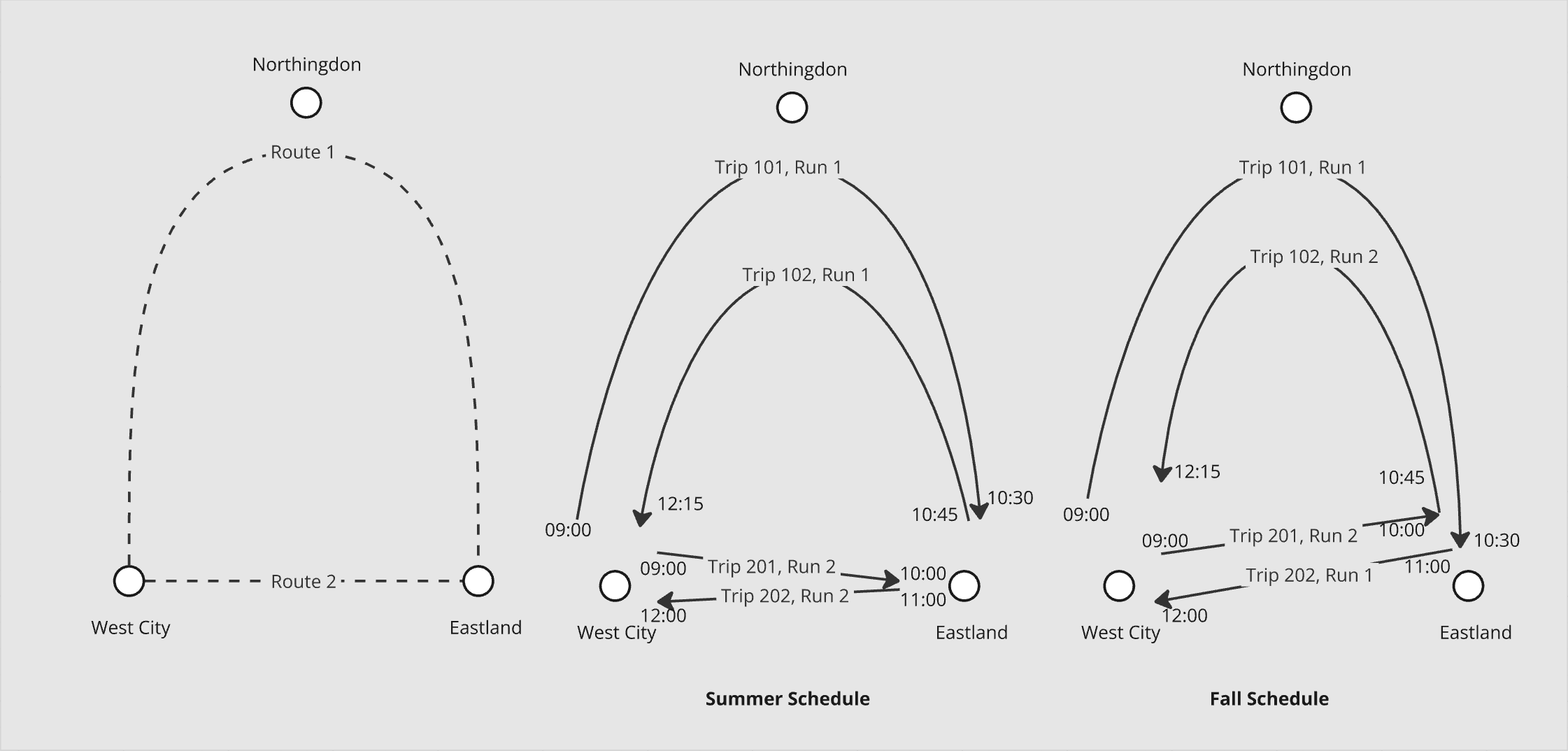

Consider a bus network between West City, Eastland, and Northingdon. Route 1 runs between West City and Eastland via Northingdon, whereas Route 2 runs directly between the two cities.

To lengthen a short layover and improve on-time performance, the driver working the 10:45am Route 1 departure and the driver of the 11am Route 2 departure will exchange these trips effective September 2024.

The public-facing schedule will not change. The trips remain on the service weekday. The runs are scheduled on new services summer and fall, which together cover all of the dates in weekday.

calendar.txt

service_id,monday,tuesday,wednesday,thursday,friday,saturday,sunday,start_date,end_date
weekday,1,1,1,1,1,0,0,20240601,20241231

trips.txt

route_id,service_id,trip_id,trip_headsign,direction_id
1,weekday,101,Eastland via Northingdon,1
2,weekday,201,Eastland,1
1,weekday,102,West City via Northingdon,0
2,weekday,202,West City,0

calendar_supplement.txt

To detail the presence of the new service_ids and assign them to their applicable days of the week, the runs can be added to the calendar via calendar_supplement.txt:

service_id,monday,tuesday,wednesday,thursday,friday,saturday,sunday,start_date,end_date
summer,1,1,1,1,1,0,0,20240601,20240831
fall  ,1,1,1,1,1,0,0,20240901,20241231

run_events.txt

The current runs can be modeled with service_id summer, and mapped to the existing weekday trips. The future runs can be modeled with service_id fall, also mapped to the existing weekday trips. The service_id weekday is already defined in calendar.txt, but neither summer nor fall are.

service_id ,run_id ,event_sequence ,block_id ,event_type ,trip_id ,start_location ,start_time ,end_location ,end_time
summer ,1 ,20 ,A ,drive ,101 ,westcity ,09:00:00 ,eastland ,10:30:00
summer ,1 ,30 ,A ,drive ,102 ,eastland ,10:45:00 ,westcity ,12:15:00

summer ,2 ,20 ,B ,drive ,201 ,westcity ,09:00:00 ,eastland ,10:00:00
summer ,2 ,30 ,B ,drive ,202 ,eastland ,11:00:00 ,westcity ,12:00:00

fall   ,1 ,20 ,A ,drive ,101 ,westcity ,09:00:00 ,eastland ,10:30:00
fall   ,1 ,30 ,A ,drive ,202 ,eastland ,11:00:00 ,westcity ,12:00:00

fall   ,2 ,20 ,B ,drive ,201 ,westcity ,09:00:00 ,eastland ,10:00:00
fall   ,2 ,30 ,B ,drive ,102 ,eastland ,10:45:00 ,westcity ,12:15:00

(In this example, block IDs are listed in run_events.txt but not trips.txt because the blocks would also change with the schedule change.)

Vehicle Assignments

Vehicles are assigned by service date. In this example, vehicle assignments are provided for 3 consecutive days from February 5 through 7.

vehicles.txt

vehicle_id,vehicle_label,license_plate
bus-1,Old Reliable,OR-E285104
bus-2,Buster,OR-E251432

vehicle_assignments.txt

date,service_id,block_id,vehicle_id
20250205,daily,BLOCK-A,bus-1
20250206,daily,BLOCK-A,bus-2
20250207,daily,BLOCK-A,bus-1

Employee Assignments

This example uses employee_run_dates.txt to assign employees to runs (and trips).

In this example, A and B work Monday-Wednesday and Sunday. C and D work Thursday-Saturday.

On Wedneday, July 3, A has scheduled vacation, so a substitute is assigned instead.

calendar.txt

service_id,monday,tuesday,wednesday,thursday,friday,saturday,sunday,start_date,end_date
weekday,1,1,1,1,1,0,0,20240701,20240707
weekend,0,0,0,0,0,1,1,20240701,20240707

July 1, 2024 was a Monday.

run_events.txt

For this example, the purpose of this file is just to show which runs exist. Real runs would have more interesting data.

service_id,run_id,event_sequence,event_type,trip_id,start_location,start_time,end_location,end_time
weekday,101,1,work,trip1,station,09:00:00,station,17:00:00
weekday,102,1,work,trip2,station,09:00:00,station,17:00:00
weekend,103,1,work,trip3,station,09:00:00,station,17:00:00
weekend,104,1,work,trip4,station,09:00:00,station,17:00:00

employee_run_dates.txt

date,service_id,run_id,employee_id
20240701,weekday,101,A
20240701,weekday,102,B
20240702,weekday,101,A
20240702,weekday,102,B
20240703,weekday,101,A
20240703,weekday,102,B
20240704,weekday,101,C
20240704,weekday,102,D
20240705,weekday,101,C
20240705,weekday,102,D
20240706,weekend,103,C
20240706,weekend,104,D
20240707,weekend,103,A
20240707,weekend,104,B
